Description

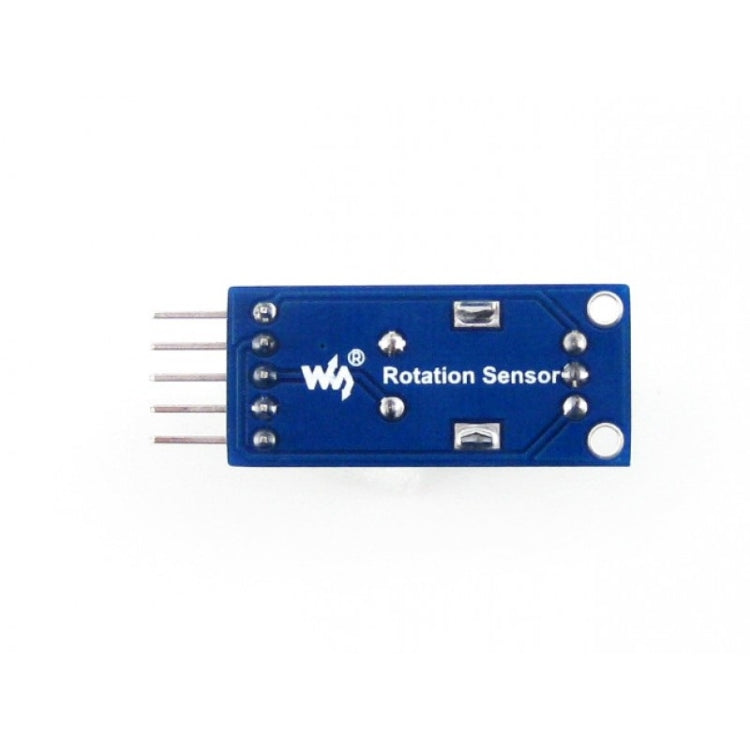

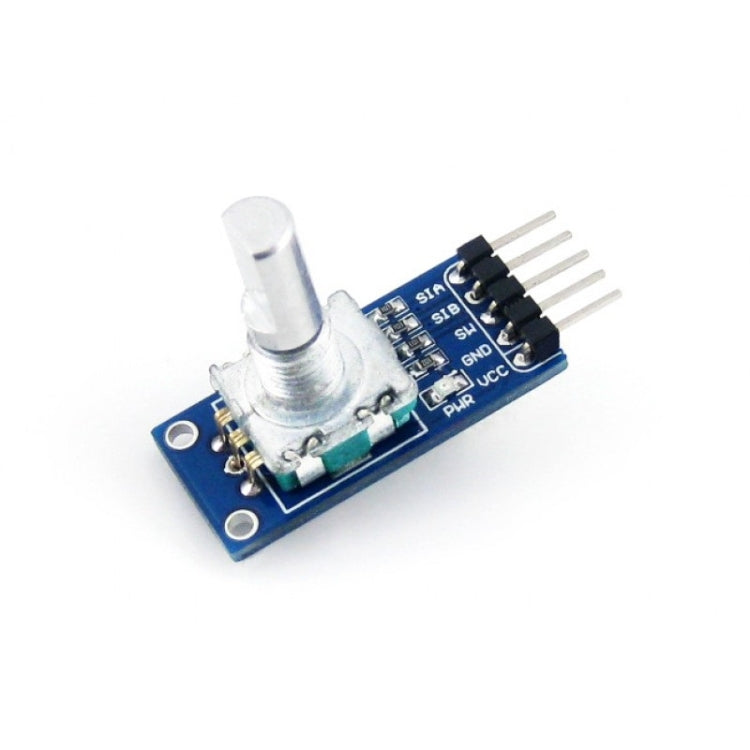

Overview
Detects clockwise/anti-clockwise rotations: degrees and laps

Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm

Applications
Positioning in Industrial Controls

How to Use

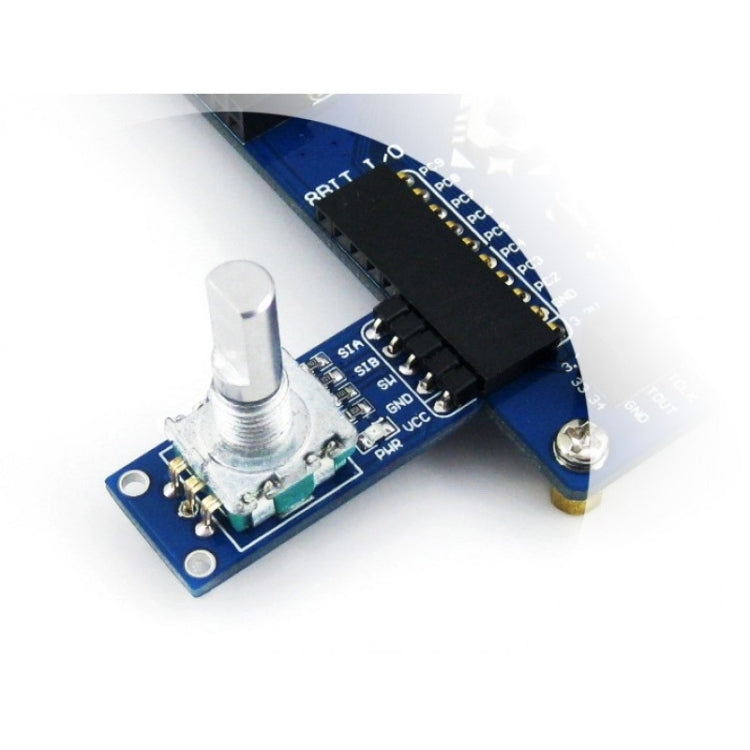

In the case of working with a MCU:

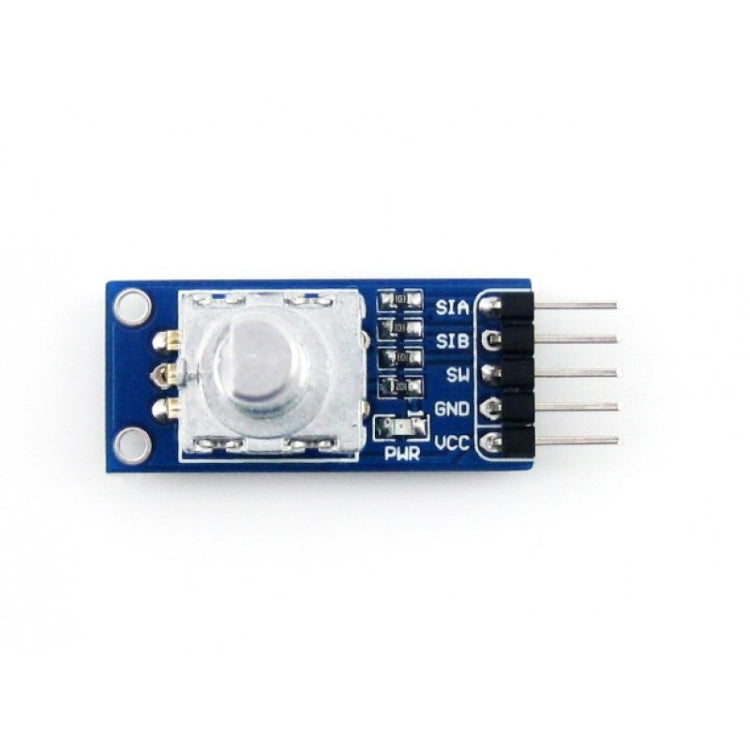

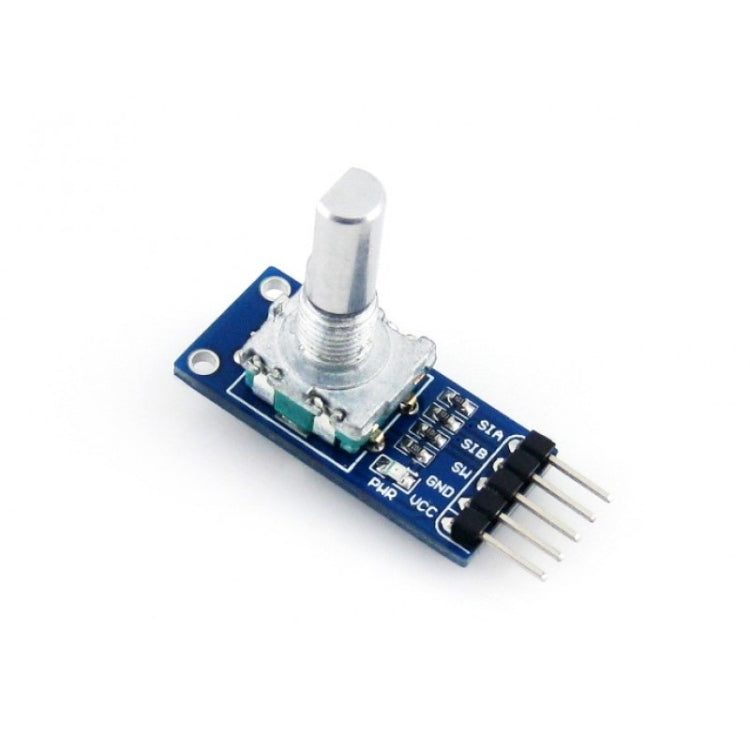

1. VCC — 3.0V ~ 5.3V
2. GND — Power supply ground
3. SW — MCU.IO (encoder button status)
4. SIB — MCU.IO (output status)
5. SIA — MCU.IO (output status)
